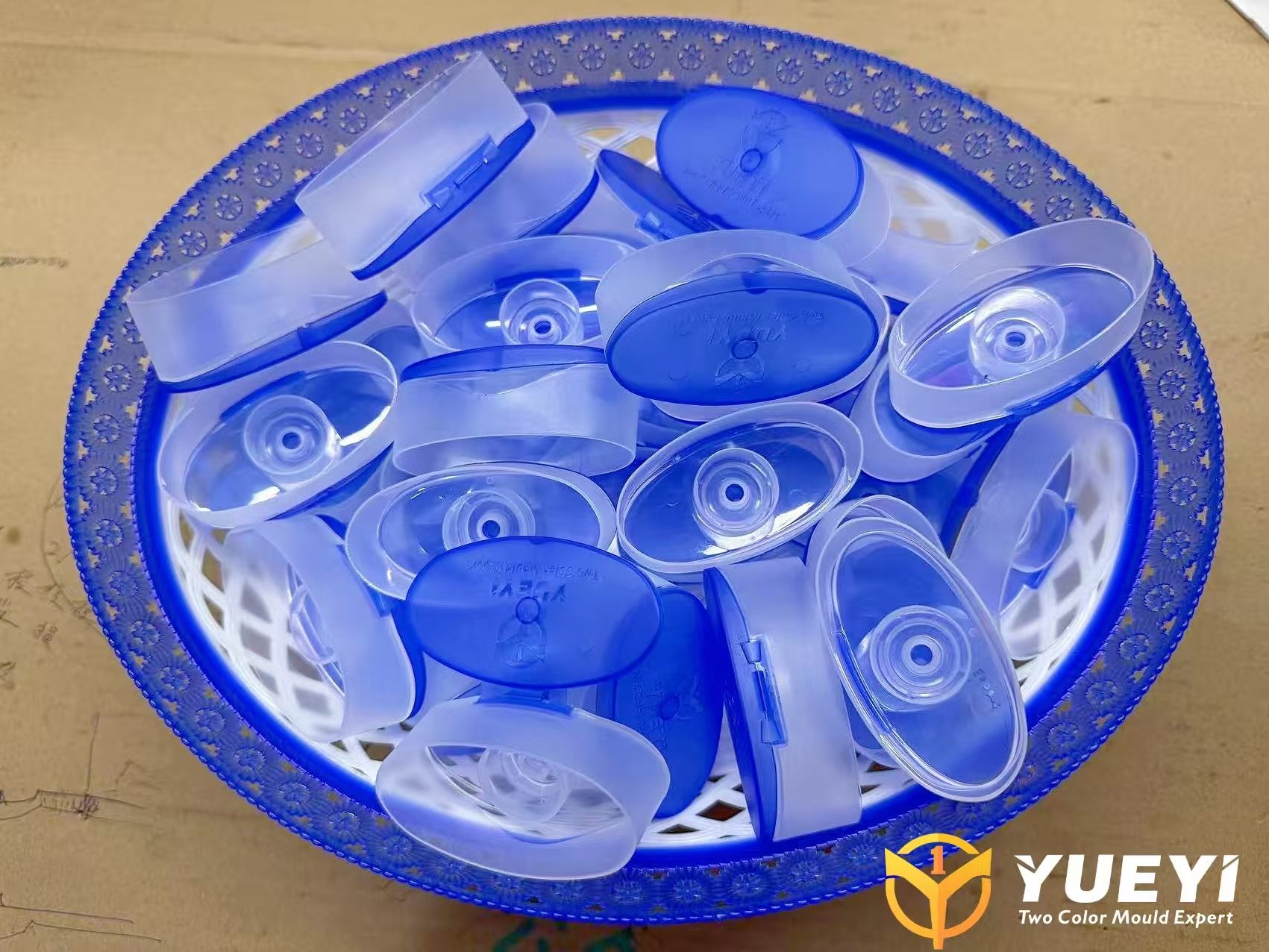

Two Shot Flip-top Cap Mould

Project introduction:

In modern packaging, the smallest interaction often defines the entire user experience.
That subtle “click” when a flip-top cap closes — the smooth one-hand opening — the leak-proof seal — all of these depend on precision mould engineering behind the scenes.

Today’s brands demand caps that are not only functional, but also intuitive, durable, and visually distinctive. This is why two-shot (two-material) injection moulding has become the preferred solution for high-end flip-top caps.

At YUEYI MOULD, we specialize in developing high-precision two-shot flip-top cap moulds that enable customers to achieve perfect sealing, smooth hinge performance, and efficient mass production.

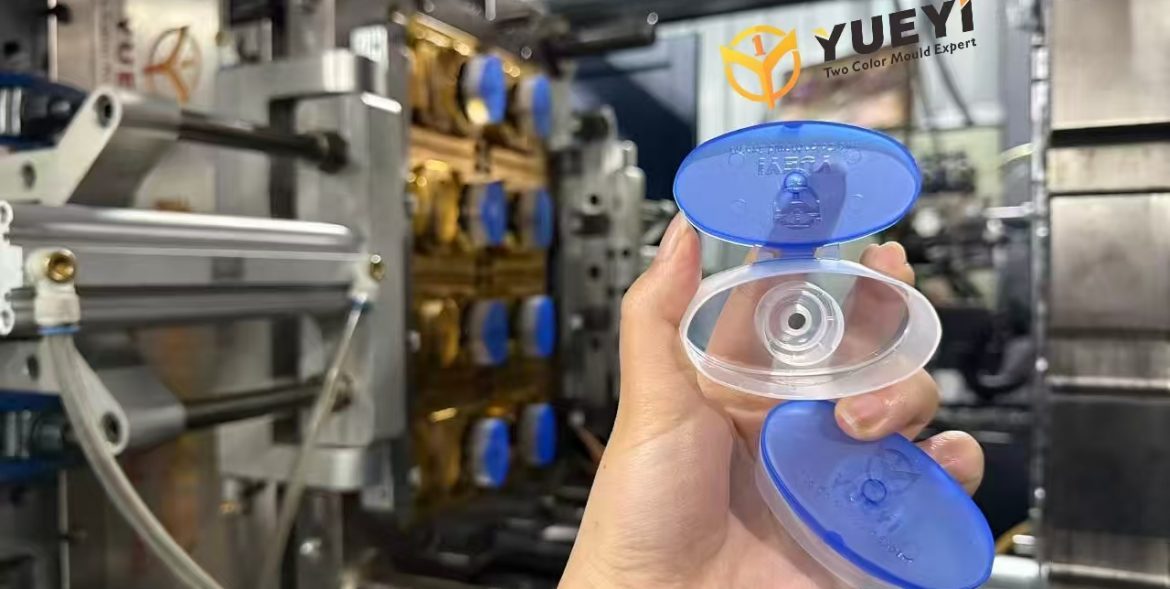

Mould information:

Mould cavities: 8 cavities

Mould injection system:

                    1^st shot PP: 8 tips hot runner valve gate

                    2^nd shot PP: 8 tips hot runner valve gate

Cycle time: 30s

Injection machine:
280T injection machine with additional injection unit from back side, 90 degree injection.
